Commercial&Industrial
BESS Solutions

GRID-CONNECTED C&I MICROGRID OFF-GRID C&I MICROGRID ON/OFF-GRID C&I MICROGRID

Challenges

Unreliable grid and load-shedding cause costly downtime for businesses.

Volatile electricity prices and polluting diesel backups complicate cost control.

Solar generation often mismatches demand, resulting in low self-use and high waste.

Solutions

Functions

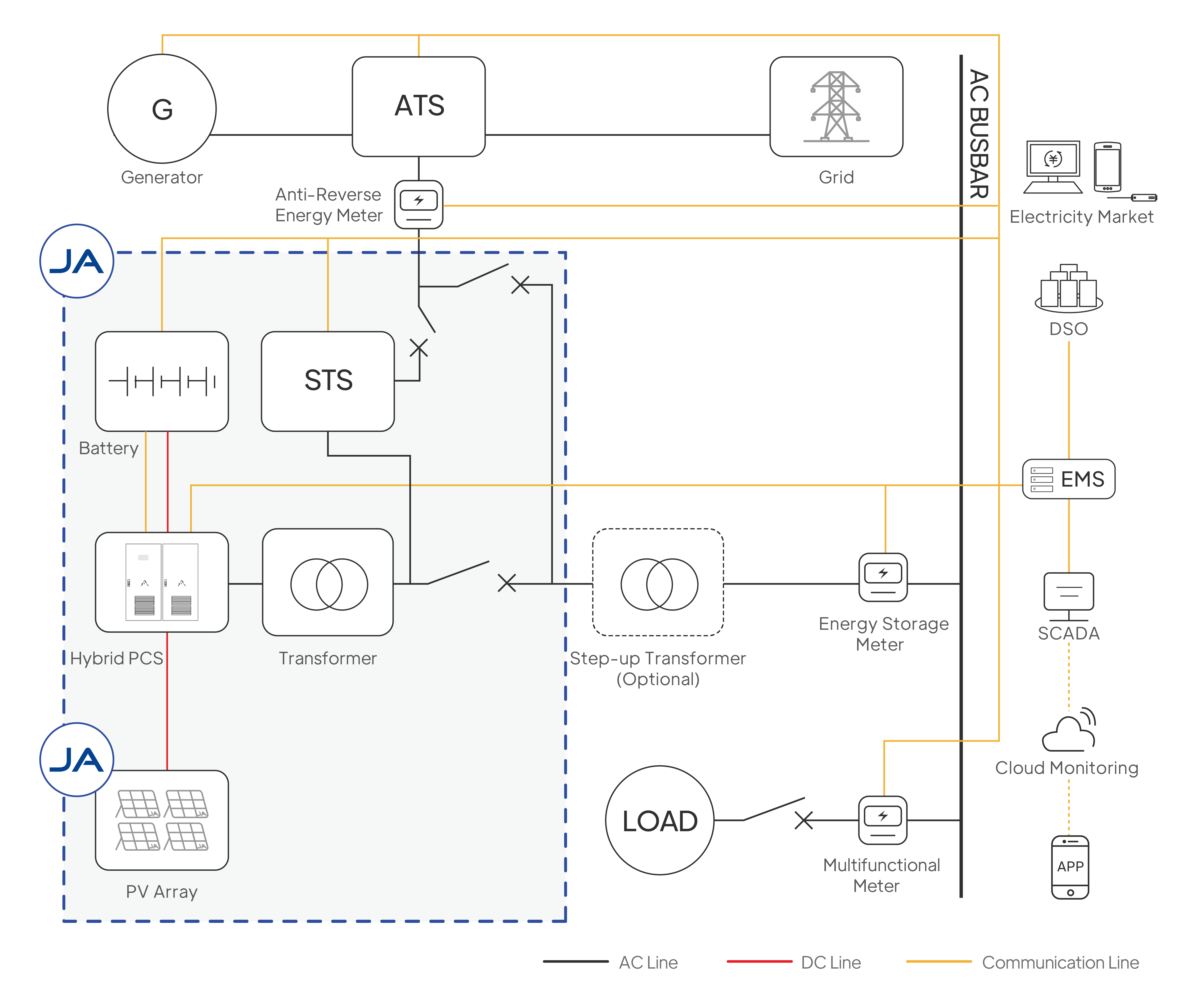

Supporting both AC/DC coupling, our multi-parallel PCS (up to 3MW) enables seamless grid to island transition (≤20ms) using PQ/VF control modes, ensuring uninterrupted critical load supply during grid failures.

The site EMS intelligently coordinates PV, storage, and generators to optimize energy dispatch, reducing diesel dependence while maintaining continuous power for critical operations.

Based on black start capability, achieving autonomous power restoration and system energy reconstruction.

Benefits

The integrated PV-storage-generator solution improves power reliability and system stability during grid failures and load shedding.

Energy storage allows for peak-valley arbitrage reducing electricity costs by 6%-12% and reducing reliance on costly backup power.

The system effectively regulates renewable energy ?uctuations increasing self-consumption and reducing curtailment.

Advantages

Safety

Comprehensive Cell Screening implementing multi-dimensional battery cell selection and testing protocols.

Multi-Layer Protection integrating electrical, structural, and explosion-proof safeguards three-level ?re protection design.

Zero Safety Incidents maintaining a proven track record of no safety accidents.

Cost Efficiency

An integrated control solution for PV-storage-generator systems that optimizes overall energy costs.

Low auxiliary energy consumption and high system-wide ef?ciency.

Modular design enables ef?cient operation and maintenance.

Reliability

Seamless grid-connected/off-grid transition and black-start capability.

Strong environmental adaptability and system immunity to interference (with isolated transformer).

One-stop service and full lifecycle intelligent O&M support.

TECHNICAL DATA

Model		JAP-100kW	JAP-150kW	JAP-250kW	JAG-500kW	JAG-1000kW
AC Side	Nominal Power	100kW	150kW	250kW	500kW	1000kW
	Nominal Current	144A	216A	361A	722A	1445A
	Nominal Voltage	400V(3W+N+PE)
	Voltage Range	320~460V
	Nominal Frequency	50/60Hz
	Power Factor	1.0 leading~1.0 lagging
	Overload Capacity	110% long-term, 120% for 1 min
	On/Off Grid-Connection Switching	Supports 20ms
	Isolation Transformer	270/400V	315/400V	315/400V	315/400V	315/400V
PV (Optional)	Number of MPPTs	2	2	4	8	16
PV (Optional)	MPPT Rated Power	150kWp	150kWp	300kWp	600kWp	1200kWp
Battery	Battery Type	3.2V / 280Ah / LFP / 1P240S	3.2V / 280Ah / LFP / 2P240S	3.2V / 280Ah / LFP / 3P240S	3.2V / 280Ah / LFP / 5P240S	3.2V / 280Ah / LFP / 10P240S
	No.of Clusters	1	2	3	5	10
	Nominal Energy	215kWh	430kWh	645kWh	1075kWh	2150kWh
Basic Parameters	Max. C-rate	0.5P@25℃	0.5P@25℃	0.5P@25℃	0.5P@25℃	0.5P@25℃
	Protection Level	IP54	IP54	IP54	IP54	IP54
	Max. Off-Grid Parallel Quantity	6	6	6	6	3
	Max. Operating Altitude	2000m (>2000 with derating)
	Cooling Method	Intelligent Air Cooling
	EMS Communication	RS485, TCP/IP
	Fire Suppression System	Aerosol	Aerosol	Aerosol	HFC-227ea	HFC-227ea

Download

PROJECTS

Island C&I PV+BESS Project in Italy

Customs "PV + Storage + Charging" Pilot Project in Shanghai

Industrial Park C&I ESS Project in Jiangsu

Zero-Carbon Industrial Park BESS Project in Zhejiang

PV-Storage Integrated Project in Jiangsu

“PV + Storage + Diesel” Microgrid Project in Nakuru, Kenya

PV-Storage Integrated Project in Inner Mongolia
